Low Voltage Flame Retardant Power Cable PVC Jacket And Copper Conductor

Product Categories
Shandong Jinyu Cable Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

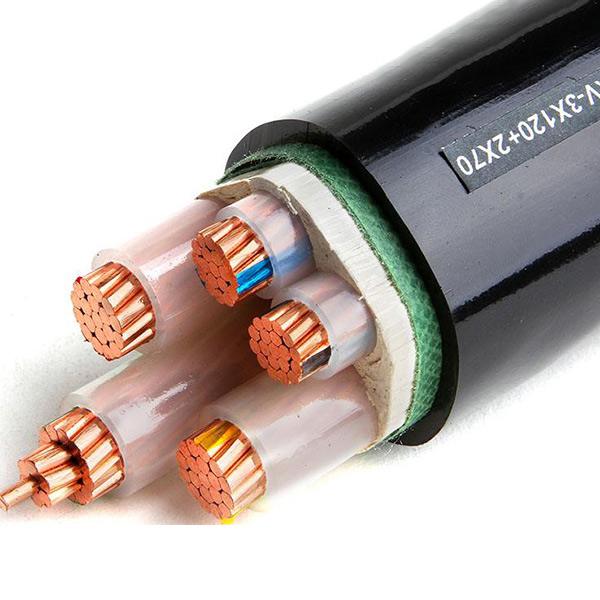

Low Voltage Flame Retardant Power Cable PVC Jacket And Copper Conductor

Place of Origin : Shandong, China

Brand Name : Yuanhui

Model Number : YJV

MOQ : 500 meters

Price : $15.00/meters 500-999 meters

Insulation Material : PVC

Type : LOW VOLTAGE

Application : Construction

Conductor Material : Copper

Jacket : PVC

Color : black

Conductor : copper

Standard : GB,IEC

Core : 11core,32core,3core

Voltage : Low Volatge

MOQ : 1000 Meters

Sample : available

Armour : steel or customized

Certificate : CE

Key words : Power Cables

Contact Now

Products Description
Low Voltage Flame Retardant Power Cable PVC Jacket And Copper Conductor
Low Voltage Flame Retardant Power Cable PVC Jacket And Copper Conductor
XLPE Insulated Power Cable
Power cables are cables used to transmit and distribute electrical energy. Power cables are often used in urban underground power grids, power station outgoing lines, internal power supply in industrial and mining enterprises, and underwater transmission lines across the river. YJV cables are the backbone cables in power transmission. They are usually found in urban underground passages (underground manhole covers) or buried underground. Construction teams often cut off the power cables during construction and cause large-scale power outages.
Specification
Rated Voltage:0.6/1KV 6/10KV; 8.7/15KV; 12/20KV; 18/20KV; 21/35KV; 6/35KV
Voltage level:Low voltage cable, Medium voltage cable, High voltage cable
Common size:1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm², etc.
Number of cores:Single core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1 cores, 3+2 cores, 4+1 cores, etc.
Material:Copper ,HCCA,CCAArmoured:Steel tape armored, steel wire armored
Nominal-sectionalarea of conductor
Insulation thickness
Sheath thickness
mm²
mm
mm
4X4
0.7
1.8
4X6
0.7
1.8
4X10
0.7
1.8
4X16
0.7
1.8
4X25
0.7
1.8
4X35
0.9
1.8
4X50
1.0
1.8
4X70
1.1
2.0
4X95
1.1
2.0
4X120
1.2
2.3
4X150
1.4
2.4
4X185
1.6
2.6
4X240
1.7
2.8
4X400
2.0
3.3
Packing & Delivery
Low Voltage Flame Retardant Power Cable PVC Jacket And Copper Conductor
Low Voltage Flame Retardant Power Cable PVC Jacket And Copper Conductor
Our Delivery time need 5~10 days after received your payment. Please confirm all the details information so we can arrange your order as soon as possible!
Company Profile
Low Voltage Flame Retardant Power Cable PVC Jacket And Copper Conductor
Low Voltage Flame Retardant Power Cable PVC Jacket And Copper Conductor
Low Voltage Flame Retardant Power Cable PVC Jacket And Copper Conductor
Low Voltage Flame Retardant Power Cable PVC Jacket And Copper Conductor
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.

Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.

Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.

Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.

Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.

Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
